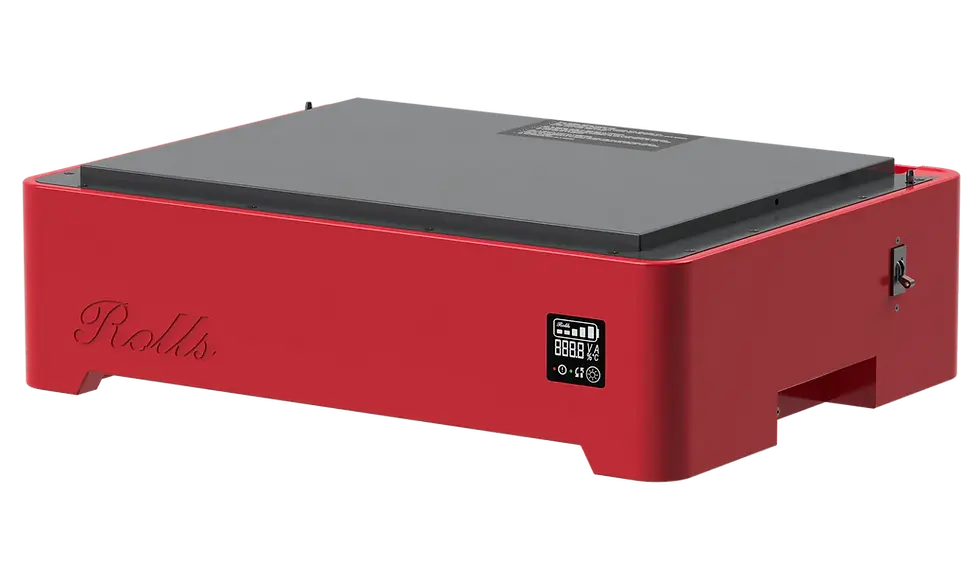

Rolls Stackable Lithium Batteries / S48-100LFP STACK-LV
Datasheet

Design
  • Modular, stackable design
  • Up to 8 parallel connectivity
  • Integrated display
  • Battery status indication
  • CAN bus & RS-485 connectivity
  • External breaker access
  • PC & Mobile App Connectivity
  • Modular LFP Stack Base+Top Assembly (shown)
    • Install up to 8 x S48-100LFP STACK-LV units

Battery Management System (BMS)
  • Integrated hardware BMS inside
  • Independent charge & discharge protection
  • Short-Circuit Protection, Over-Voltage Protection, Low-Voltage Protection, Over-Current Protection, Low-Temperature Protection, Over-Temperature Protection
  • Secondary protection – Internal BMS Switch & Relay, External Breaker Access

Safety & Certification
  • MH5032778: UL 9540, UL 9540A, UL 1973
  • Prismatic LiFePO4 cells [100Ah prismatic cell] (UL 1642)
  • IEC62619 (cell), UN38.3 (cell/pack)
  • ROHS (cell), CE system certification, IP52 Rating

Rolls Stackable 48V Lithium Batteries / S48-100LFP STACK-LV

$2,234.92Price
Quantity

  • Base + Top

    **PRICE IS PER BATTERY, DOES NOT INCLUDE BASE AND TOP, WHICH ARE REQUIRED FOR USE**
